Drive system:
Single-axle gear,imported timing belt,key position adopt the imported bearing.
Product size: Daytime use: 240mmNight use: 285mm(Customized)
Control system:
PLC programming control,HMI operation.
Item No.:
DNW-06Payment:
30% T/T deposit,70% Balance before shippingProduct origin:
ChinaColor:
CustomizedShipping port:
XiamenLead Time:
About 180daysPrice Range:

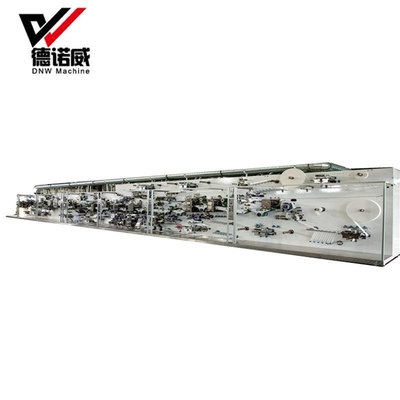

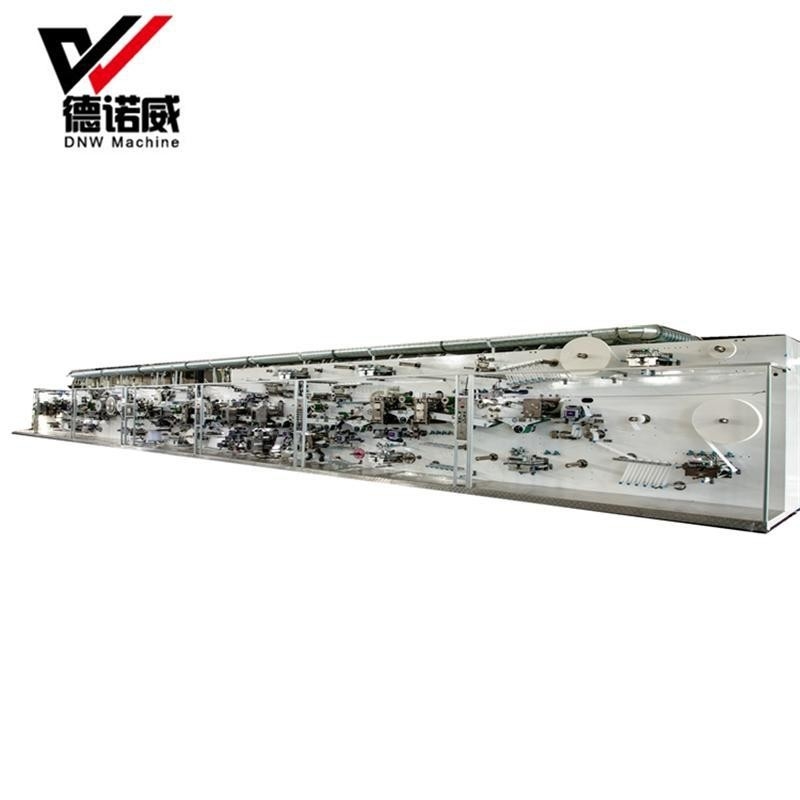

$295000-$525000/setDNW-06 Full automatic drive sanitary napkin machine
| Subject | Parameter |
| Overall size(L*W*H) |
30M*6M*3M(For reference only) |
|
Machine size(L*W*H) |
22m*2m*2.5m,based on the product provided by client |
| Design speed | 600pcs/min |
| Stable speed | 500pcs/min |
| Pass precentage | 98% |
| Work efficiency | 90% |
| Power source | 380V,50HZ,(3phase,4lines+ground wire) |
| Machine capacity | about 180KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | About 50T |
| Machine color | Customized |
A&B shaft active unwinding by inverter motor.
5.Drive system:
Single-axle gear,imported timing belt,key position adopt the imported bearing.
6.Safety system:
Safty guard installed at the operating side,equipped with emergency stop switch,security identifier.Driven side is equipped with sadety pull wire.
7.Materials corrective system:
Germany BST automatic web guide system(optional)
