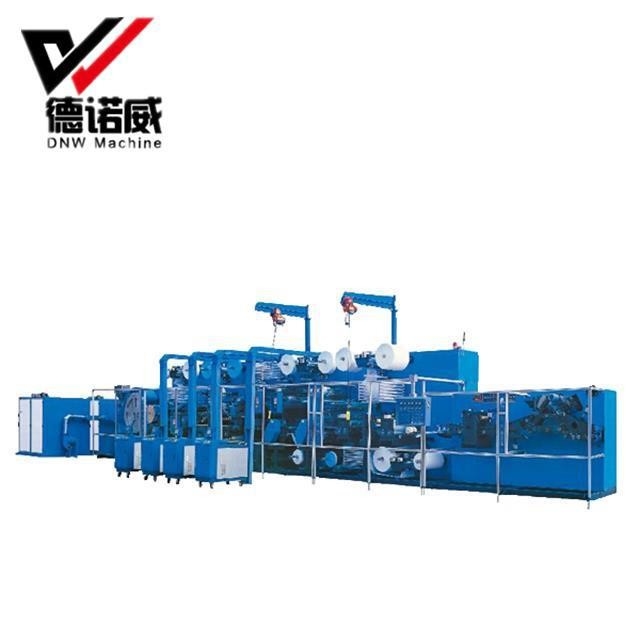

DNW-26 Good quality and high speed design adult diaper machine making

DNW-26 Good quality and high speed design adult diaper machine making

  • DNW-26 Good quality and high speed design adult diaper machine making
DNW-26 Good quality and high speed design adult diaper machine making
Product Details:
Contact Now
Detailed Product Description

DNW-26 Good quality and high speed design adult diaper machine making

Drive system:

Timing belt and flat belt are imported products,and all the key parts are imported bearings.

Product size: M: 680*450 L: 800*650XL: 950*760

Control system:

PLC control system,operating on the touch screen,man-machine interface

  • Item No.:

    DNW-26

  • Payment:

    30% T/T deposit,70% Balance before shipping

  • Product origin:

    China

  • Color:

    Customized

  • Shipping port:

    Xiamen

  • Lead Time:

    About 180days

  • Price Range:

    $610000-$865000/set
Contact Us
Product Details

DNW-26 Good quality and high speed design adult diaper machine making

Subject Parameter
Overall size(L*W*H) 24M*4M*3.6M(For reference only)
Machine size(L*W*H)
 22m*2.1m*3.3m,based on the product provided by client
Design speed 300pcs/min
Stable speed 160pcs/min
Pass precentage 98%
Work efficiency 85%-90%
Power source 380V,50HZ,(3phase,4lines+ground wire)
Machine capacity about 400KW
Air pressure 0.6-0.8Mpa
Machine weight About 95T
Machine color Customized

Configuration:
1. Product structure:
Leg cuff N.W,Top sheet N.W,Fluff core(with SAP) Side Tape,ELastic waistband,Frontal tape,Back sheet.
2. Product size:
M: 680*450 L: 800*650XL: 950*760
3. Control system:
PLC control system,operating on the touch screen,man-machine interface
4.Tension system:
Leg cuff N.W,Top sheet N.W,elastic waistband,upper & down tissue,back sheet are A & B shaft active unwinding by Inverter motor.
5.Drive system:
Timing belt and flat belt are imported products,and all the key parts are imported bearings.
6.Safety system:
It has safety device on the operating side,matched with urgent stop switch,high audio fan uses sound insulation or silencer.
7.Packing way:
Equipped with the stacker at the request of client.
8.Materials corrective system:
Germany BST automatic web guide system(optional)

Main Product:

1. Baby diaper Production Line( Include:I & T shape diaper,Baby pants,Full Elastic waistband diaper)
